| 원래 장소 | 중국 |
| 브랜드 이름 | Dawnergy |
2.0mm Fiber Optic Patch Cord
Dawnergy’s fiber optic patchcords are used for connecting the device through different connectors.
Features
l Low insertion loss
l High return loss
l Good repeatability
Applications
l Telecommunication networks
l CATV networks
l FTTx project

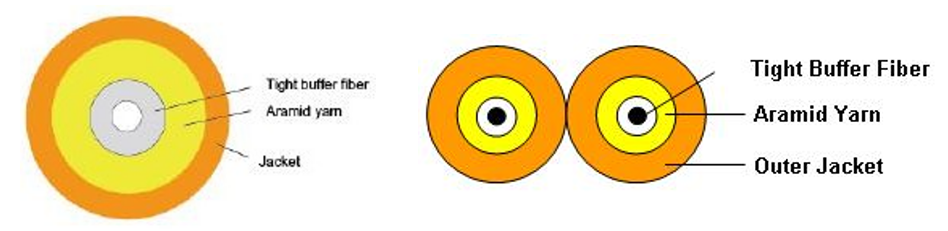

Optical Cable Drawing
Patchcord Specifications
|
Parameters |
Specifications |
|
Fiber Type |
SM (G652D) |
|
Fiber Spec |
Mode field diameter (MFD): At 1310 nm: 9.2 μm ± 0.4 μm At 1550 nm: 10.4 μm ± 0.8 μm Cladding diameter: 125 μm ± 0.7 μm Core concentricity error: ≤ 0,6 μm |
|
Insertion Loss (dB) |
≤ 0.3 (max) |
|
Return Loss (dB) |
≥ 50 (UPC) |
|
Operating Wavelength Range |
Single-mode: 1310 nm to 1550 nm |
|
Connector Type (with dust cap) |
FC/UPC-FC/UPC FC/UPC-SC/UPC SC/UPC-SC/UPC SC/UPC-LC/UPC FC/UPC-LC/UPC |
|
Connector Color |
TIA-568-C.3 standard |
|
Fiber Cores |
Simplex or Duplex |
|
Outer Dimension |
2mm ± 2% |
|
Strengthen Member |
Kevlar |
|
Material of Outer Jacket |
Yellow LSZH |
|
Bending radius |
≥ 3 cm |
|
Cable Length |
3, 5,10,15,20m ± 2% |
|
Durability (dB) |
△IL≤ 0.1, 200 times plugging |
|
Tension |
≥ 90 N |
|
Crush resistance |
≥ 500 N |
|
Operating Temperature Range (℃) |
-10 ~ +60 |
|
Guaranteed |
≥ 15 years |
The patch cord shall be clearly and fully marked with the following information: cable type, cable length (or meter marking of the cable reel), and manufacturer’s name.
