DA-PLC Planar Light Wave Circuit (PLC) Splitter
Description
Dawnergy’s Planar Lightwave Circuit (PLC) Splitters are built using unique silica glass waveguide process. These devices have low insertion loss with high return loss over a wide wavelength range. The input of PLC Spitters distribute optical power to the output ports and are commonly used in FTTx systems, communication networks, Analog Passive Optical Networks, CATV networks and other fiber optic systems. Mini type PLC splitter can be installed in fiber termination box, fiber distribution box, splice closure and rack mounted splitter box. The compact design can save installation space and time.
Features
l Low Insertion loss & High Return Loss
l Manufacturing and testing standard: Telcordia GR-1209 and GR-1221
l Low PDL
l Compact Design
l Good channel-to-channel uniformity
l Wide Operating Wavelength Range and Operating Temperature
l High Reliability and Stability for Indoor and Outdoor Applications
PLC Splitter Module Specifications
|
Parameters |
1x16 |
|
|
Connector type |
SC/APC |
|
|
Size(mm) |
60x12x4 |
|
|
Operating Wavelength(nm) |
1260~1625 |
|
|
Insertion Loss (dB) |
Max |
14.3 |
|
Uniformity (dB) |
Max |
1.8 |
|
PDL (dB) |
Max |
0.3 |
|
Return Loss (dB) |
Min |
55 |
|
Directivity (dB) |
Min |
55 |
|
Fiber Type |
ITU-T G652D (Mode field diameter at 1310 nm: 9,2 µm ± 0,4 µm – at 1550 nm: 10,4 µm ± 0,8 µm) |
|
|
Housing Material |
Stainless steel |
|
|
Pigtail Length |
l The input side of the optical splitter shall be without connector, and the output side shall be terminated with connectors. l The input pigtail length shall be 150 cm ± 3 cm. l The output pigtail length shall be 60 cm ± 3 cm. |
|
|
Pigtail OD |
900um±5%, Uniformity < 20um |
|
|
Pigtail Color |
Input: White Output: TIA/EIA 598-A with number maker from 1 to end |
|
|
Operating Temperature (℃) |
-10~70 |
|
Package

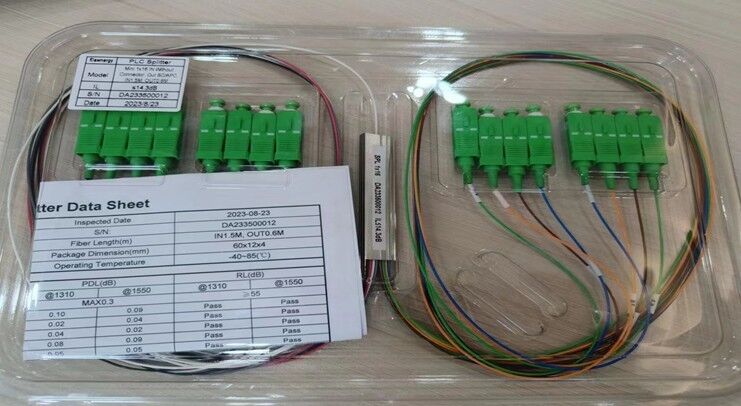

Splitter packed by blister plastic box, one splitter per each box, test report of each splitter included in the box. The label in plastic box with information about: Nominal Insertion loss, type of Splitter, serial number
Label on Splitter
Print information: Nominal Insertion loss, type of Splitter, serial number
