| 원래 장소 | 중국 |
| 브랜드 이름 | Dawnergy |

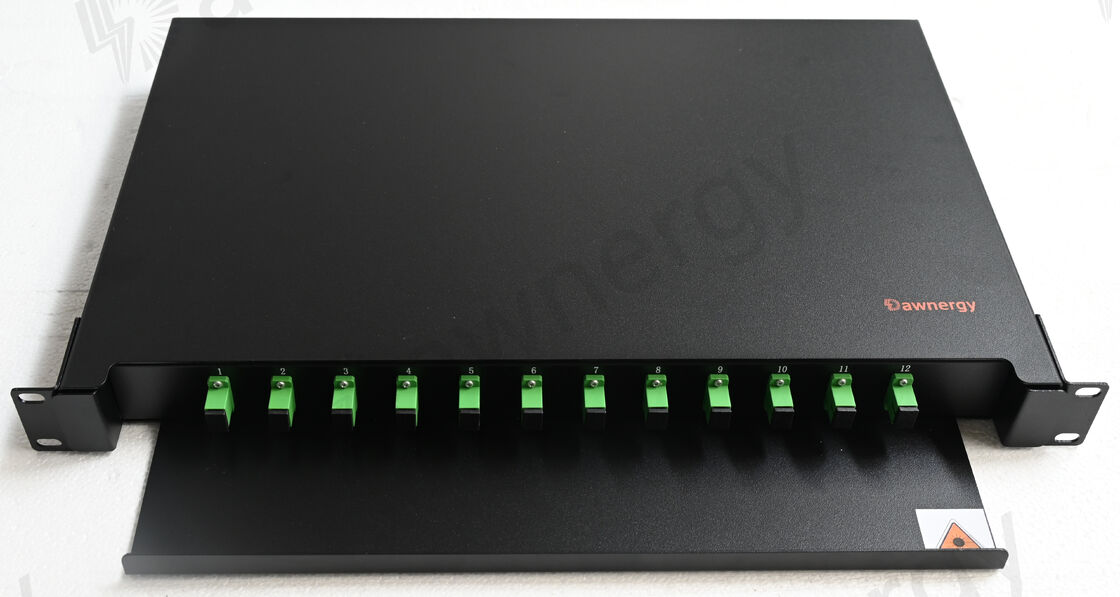

DA-PP Fiber Optic Distribution Frame
Dawnergy’s Rack-mount Fiber Optic Distribution Frame has cold steel sliding fittings with self-locking functions, preventing the drawer from falling when moved; 19-inch rack mount for SC or LC adapters. Max up to 144cores. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.
Features
v Standard size, light weight and reasonable structure
v Slide out drawer for easy cable management
v Compact design for space saving
v Various panel plate to fit different adapter interface
v Easy for management and operation
Applications
v Telecommunications subscriber loop
v Fiber to the home (FTTH)
v LAN/WAN
v CATV
Specifications
|
Parameters |
Specification |
|||||
|
Max. No. of Cores |
12/24 |
36 |
48 |
72 |
96 |
144 |
|
Adapter Type |
SC/APC or SC/UPC LC/APC or LC/UPC |
|||||
|
Box Material |
1.2mm Cold-rolled steel |
|||||
|
Splicing Tray |
24cores tray |
|||||
|
Open Type |
Sliding type |
|||||
|
Dimensions (mm) |
485*360*44 |
485*360*66 |
485*360*88 |
485*360*132 |
485*360*176 |
485*360*264 |
Standard Package
|
No. |
Name |
Unit |
Quantity |
|
1 |
Fiber Optic Distribution Frame |
set |
1 |
|
2 |
Cable Ties |
pieces |
According to fiber cores |
|
3 |
Protective Sleeves |
pieces |
12, 24, 36, 48, 72, 96 or 144 |
Ordering Information
|
PN |
Name |
Description |
|
Fiber Optic Distribution Frame |
19-inch rack, 1U, sliding type; Max. 12 cores, SC adapter panel; |
|
|
DA-PP-S-24B-SC-1 |
Fiber Optic Distribution Frame |
19-inch rack, 1U, sliding type; Max. 24 cores, SC adapter panel; |
|
DA-PP-S-36B-SC-1 |
Fiber Optic Distribution Frame |
19-inch rack, 1.5U, sliding type; Max. 36 cores, SC adapter panel; |
|
DA-PP-S-48B-SC-1 |
Fiber Optic Distribution Frame |
19-inch rack, 2U, sliding type; Max. 48 cores, SC adapter panel; |
|
DA-PP-S-72B-SC-1 |
Fiber Optic Distribution Frame |
19-inch rack, 3U, sliding type; Max. 72 cores, SC adapter panel; |
|
DA-PP-S-96B-SC-1 |
Fiber Optic Distribution Frame |
19-inch rack, 4U, sliding type; Max. 96 cores, SC adapter panel; |
|
DA-PP-S-144B-SC-1 |
Fiber Optic Distribution Frame |
19-inch rack, 6U, sliding type; Max. 144 cores, SC adapter panel; |
Note: FC TYPE Adapters and pigtails are optional
