AC/DC Adapter 6V-10A

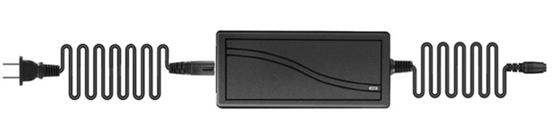

Picture just for reference
|
Electrical specifications |
|
|
Input voltage |
100-240V AC@50-60Hz |
|
Output voltage |
6VDC (±10%), Vpp ≤ 120mV |
|
Output current |
10A ±5% |
|
Output power |
60W ±10% |
|
Mechanical Specifications |
|
|
Input plug |
European 2-pin |
|
Input cable length |
500 ≤ L ≤ 2000 mm |
|
DC Connector type |
5.5x2.5mm |
|
Output cable length |
500 ≤ L ≤ 2000 mm |
|
Height |
≤ 200 mm |
|
Width |
≤ 100mm |
|
Deep |
≤ 50mm |
|
Weight |
≤ 0.5 |
|
Material |
Plastic |
|
Environmental Specifications |
|
|
Operating temperature range |
0 ~ +40℃ |
|
Storage temperature |
0 ~ +40℃ |
|
Safety standards |
EN60950/ IEC60950/ IEC62368-1 |
